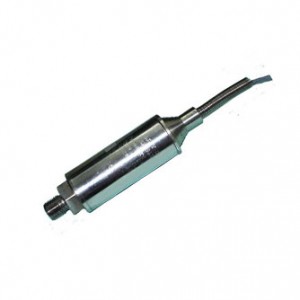

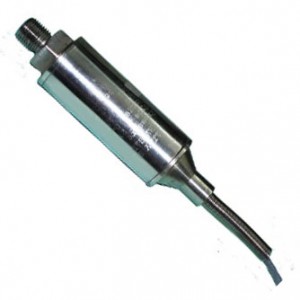

The M5200 pressure transducers from the Microfused line of MEAS, with their modular design, offer maximum flexibility for different configurations. This latest series sets a new price performance standard for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.


FEATURES :

  • Heavy Industrial CE Approval
  • 10 V/m EMI Protection
  • Reverse Polarity Protection on Input
  • Short Circuit Protection on Output
  • ±0.25% Accuracy
  • ±1.0% Total Error Band
  • Compact Outline
  • -40°C to +125°C Operating Temperature
  • Weatherproof

APPLICATIONS :

  • Industrial Process Control and Monitoring
  • Advanced HVAC Systems
  • Refrigeration Systems
  • Automotive Test Stands
  • Off-Road Vehicles
  • Pumps and Compressors
  • Hydraulic/Pneumatic Systems
  • Agriculture Equipment
  • Energy Generation and Management


Download Brochure

Request Quote

The M5200 pressure transducers from the Microfused line of MEAS, with their modular design, offer maximum flexibility for different configurations. This latest series sets a new price performance standard for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.

The wetted material is made of 17-4 PH stainless steel and the transducer’s durability is excellent with no o-rings, welds or organics exposed to the pressure media. The M5200 is weatherproof and exceeds the latest heavy industrial CE requirements including surge protection. The circuit is protected from reverse wiring at input and short circuit at output.

This product is geared to the OEM customer for low to mid volumes. MEAS stands ready to provide a custom design of the M5200 where the volume and application warrants. Additional configurations not listed are either available or possible. Please inquire for further information.

PARAMETERS

MIN

TYP

MAX

UNITS

NOTES

Accuracy (combined non linearity, hysteresis, and repeatability)

-0.25



0.25

%F.S.

BFSL

Isolation, Body to any Lead

100





@500VDC

Dielectric Strength





2

mA

@500VAC, 1min

Pressure Cycles

1.00E+6





0~FS Cycles



Proof Pressure

2X





Rated



Burst Pressure

5X



20k psi

Rated



Long Term Stability (1 year)

-0.25



0.25

%F.S.



Total Error Band

-1.0





1.0

%F.S

Over compensated temperature range

Compensated Temperature

-20



+85

°C



Operating Temperature

-40



+125

°C

Except cable 105°C max

Storage Temperature

-40



+125

°C

Except cable 105°C max

Load Resistance (RL)



RL > 100k



Ω

Voltage Output

Load Resistance (RL)



< (Supply Voltage -9V) / 0.02A



Ω

Current Output

Rise Time (10% to 90%)

<2ms (Voltage Output); <3ms (Current Output); Without Snubber

Wetted Material

17-4PH Port, 316 Stainless Steel Snubber

Gage Pressure Reference Vent

Under 1k psi, customer to ensure venting through mating connector

Bandwidth

DC to 1KHz (Typical)

Shock

50g, 11msec Half Sine Shock per MIL-STD-202G, Method 213B, Condition A

Vibration

±20g, MIL-STD-810C, Procedure 514.2, Fig 514.2-2, Curve L
